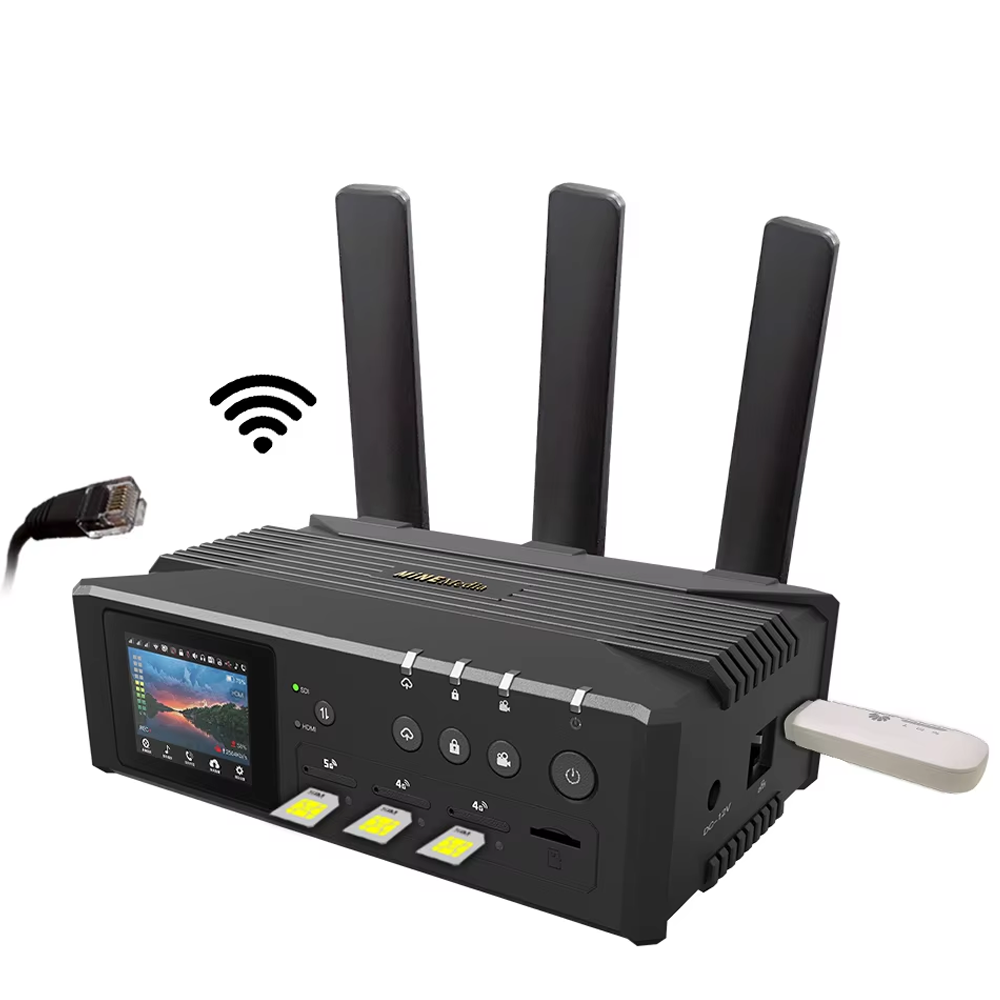

Mine Q8S 5G Live Bonding Encoder
Mine Q8S 5G Live Bonding Encoder is a high-performance H.265/HEVC & H.264/AVC professional video encoder designed for live streaming, broadcasting, and IPTV applications. With advanced network bonding technology and robust hardware architecture, it delivers low latency, high efficiency, and superior video quality for demanding media workflows.
Key Features
✔ Engineered with 6-network bonding (3x SIM, WiFi, Ethernet, USB dongle), it ensures uninterrupted streaming even in unstable network conditions.
✔ Dual-Codec Support – Supports H.265 (HEVC) for 50% bandwidth savings and H.264 (AVC) for broad compatibility.
✔ 1080p@60fps Encoding – High-resolution processing for FHD live streaming and broadcast with HDMI/SDI input.
✔ Low Latency – Ideal for real-time applications like live sports, eSports, and remote production.
✔ Multi-Protocol Streaming – RTMPS, RTMP, SRT, RTSP for flexible distribution.
✔ Multi-Platform Streaming – Push to YouTube Live, Facebook Live, Twitch, etc., simultaneously.
✔ No Public IP Needed – Supports RTMP Pull for direct integration with vMix, OBS, and other production systems.
Why Choose Mine-Q8S?
✅ Reliable & Stable – Industrial-grade components for 24/7 operation.
✅ Easy Integration – MLive App Control/Web Control/Touch-screen Control and compatibility with major media servers.
Experience stable live stream with the Mine Q8S – the ultimate solution for professional broadcasters and streaming providers.
Product Description
Mine Q8S Basic Parameters
| Model | Mine Q8S |
| Name | 5G/4G Bonding Encoder |
| Video | |
| Input | 1* HDMI & 1* SDI |
| Resolution | 1080P/720P@25/30/50/60fps 1080i@50/60fps |
| Encoding type | H.264 for RTMP / H.265 for recording |
| Encoding Levels | H.265 Main profile, H.264/AVC High / Main / Baseline Profile |
| Stream Resolution | 1920×1080, 1280×720, 960×540, 848×480, 640×360, 480×270 |
| Encoding Video FPS | 15-60FPS |
| Encoding Video Bitrate | adjustable |
| Bitrate control | VBR / CBR |
| Recording resolution | Maximum support 1080p60 |
| TS Protocols | RTMP(S) / SRT / RTSP |
| Audio | |
| Input | HDMI & SDI embed Audio and 1* 3.5mm dual-channel external audio |
| Output | 1*3.5mm dual-channel audio monitoring |
| Sample Rates | 44.1kHz, 48.0 kHz |
| Encoding | AAC |
| Network | |
| 3 SIM Slots | Built-in 5G module * 1 (Optional) & Built-in 4G module * 2 Or *3 |
| WiFi | 2.4G/5.8G dual-band WIFI access |
| RJ45 | Gigabit network port |
| USB | External 4G dongle, USB network card can be used |
| Storage | TF card (maximum 256G) |
| Power | |
| Power supply | DC12 3A |
| Battery Capacity | 7.4V/7200mAh |
| Maximum consumption | 18W |
| System | |
| Control Panel | iOS / Android APP |
| Firmware Update | supports |
| Remote management | supports |
| Working Environment | |
| Operating temperature | -20 to 80 deg C |
| Storage temperature | -40 to 90 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Dimension & Accessories | |

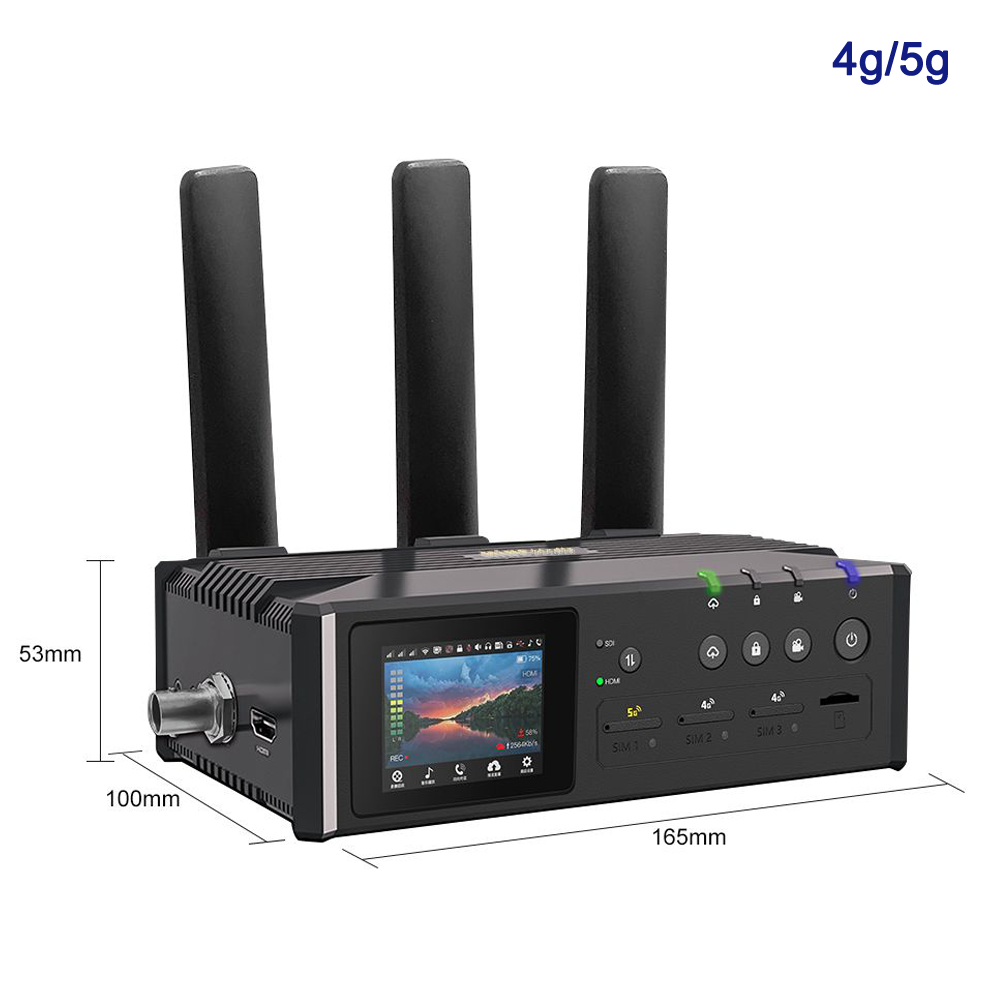

| Dimension | 162mm*102mm*53.4mm |
| Weight | 735g |
Applications
– Live Broadcasting (TV stations, OTT platforms)
– IP Video Contribution (news, sports, events)
– Video Conferencing & Remote Production
– Cloud Streaming & Multi-CDN Distribution
